Automatic Nail Machine/Iron Wire Nail Making Machine
Function of nail making machine:
Nail making Machine is mainly used for manufacturing all kinds of
nails.
Both scrap and new sttel wire can be used to make nails, It can
feed the materials automatically,
It is high speed, low noise, low power, less imppact and good
continuity.
Specification of nail making machine:
| Model | Z94-1C | Z94-2C | Z94-3C | Z94-4C | Z94-5C |
| Max. dia. of nail | 1.6mm | 2.8mm | 3.5mm | 4.5mm | 5.5mm |
| Min. dia. of nail | 0.9mm | 1.2mm | 1.8mm | 2.8mm | 3.8mm |
| Max. Length of nail | 25mm | 50mm | 75mm | 100mm | 150mm |
| Min. length of nail | 9mm | 16mm | 30mm | 50mm | 80mm |
| Motor power | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw |
| Weight | 1.2tons | 1.45tons | 1.8tons | 2tons | 2.3tons |
| Nail making speed | 450pcs/min | 350pcs/min | 320pcs/min | 260pcs/min | 200pcs/min |
| L*W*H | 1.5*1.3*1.2m | 1.7*1.3*1.4m | 2.0*1.4*1.4m | 2.2*1.6*1.65m | 2.5*1.6*1.5m |
Flow chart of wire nail making machine:
Scrap steel or new wire - wire darwing - nail making - nail
polishing - end nails
1.
| Main part | wire drawing machine | drawing the wires from big diameter to smaller ones smoothly |
| nail making machine | making nails in 9-150mm |
| nail polishing machine | washing the nails and let them brighten and perfect |
| Auxiliary Equipment | Nail cutter Grinder | grinding the nail cutter, make them sharpen, longger the nail
cutter using time |
| Point rolling machine | cut the head of wire rods, and let it easy to feed in the wire
drawing machine |
| Butt welding machine | welding the broken wires when drawing |
2. the spare parts for nail making and wire drawing:

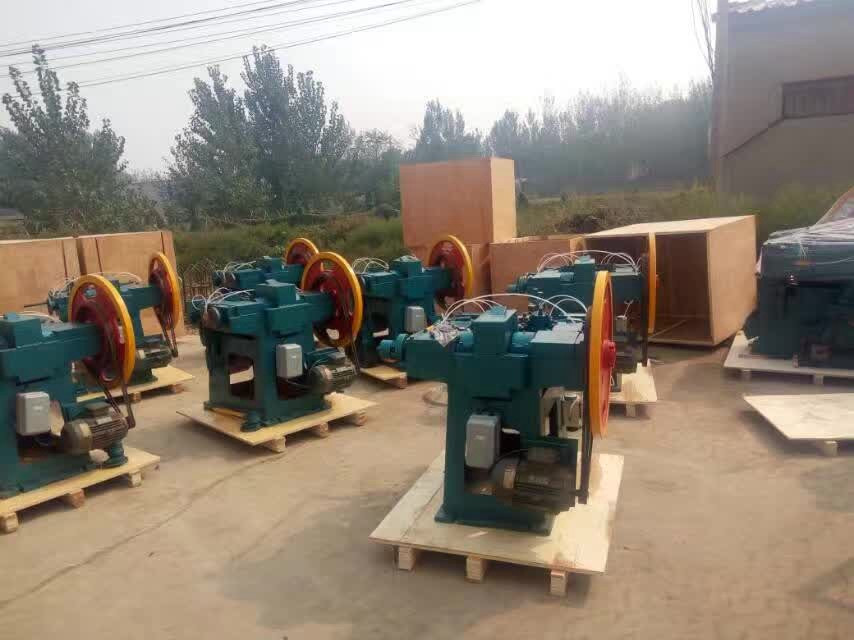

3, Package of the machine, wooden case or customizable and Delivery
the machine to our port by truck and ship the machine to your port
by sea.
Advantages:
(1)The machine has attractive appearance, rational structure and
high efficiency. It's also v durable in use, easy to maintenance
with adequate durability.
(2)All the main components are made of quality steel, such as
shaft, cams and gear.
(3) Use control handle at the inlet place in order to control
incoming line at any time during operating.
(4) A friction gear is installed between crankshaft and flywheel.
It plays a protective role of safety when the machine breaks down
or overloaded.
(5) The machine makes use of full automatic production procedure.
Once start, it could make nails continuously.
High speed wire nail making machine is in high speed and low noise.
Wire nail making machine adopts plunger type structure so as to
ensure the features such as high speed , Low noise and less impact.
Especially, wire nail making machine can make the high quality of
oil rivet nail and other shaped nails used for high speed welding
nailer and nail gun.
Features of wire nail making machine
1. This wire nail making machine can feed the materails
automatically
2. This wire nail making machine is with high speed, low noise and
less impact
3. All main parts of wire nail making machine are with high quality
steel
4. Finished product made by this wire nail making machine will be
sharp and symmetrical.
Process line to produce nails:
1. Wire drawing machine -- to form the exact wire diameter to make
nails as required
2. Wire nail making machine -- to make nails
3. Polishing machine -- to polish finished nails
Machine features
1. The nail making machine has the features of small in size, easy
to move, low noise, low power consumption, and it is easy to
operate, just need to change different size mould for making
different diameter nails, if you want to make different lengths of
nails for same diameter, no need to change anything.
2. The nail making machines can feed the materials automatically,
and making nail body straight, nail points sharp and symmetric,
nail caps round. Each nail made from this machine is excellent and
perfect.
3. The main components (shaft, cams and gear) of nail machine are
made of high quality steel, and durable in use, has good stability.
4. Free training of operating machines is offered for fee.
