Brand Name : | XM |
Model Number : | XM-1 |
Certification : | ISO9001 |
Price : | 1usd-15usd |
Supply Ability : | 10000/month |
Delivery Time : | within 7days from we got the payment advance |
Specifications
Items | Mesh | Wire Diameter (mm) | Aperture (mm) | Material (AISI) |
---|---|---|---|---|
SSPW01 | 7 × 7 | 1.00 | 2.63 | SUS304 SUS316 |
SSPW02 | 10 × 10 | 0.60 | 1.94 | |
SSPW03 | 12 × 12 | 0.50 | 1.62 | |
SSPW04 | 16 × 16 | 0.40 | 1.19 | |
SSPW05 | 16 × 16 | 0.35 | 1.24 | |
SSPW06 | 18 × 18 | 0.35 | 1.06 | |
SSPW07 | 20 × 20 | 0.40 | 0.87 | |
SSPW08 | 24 × 24 | 0.26 | 0.80 | |
SSPW09 | 30 × 30 | 0.30 | 0.55 | |
SSPW10 | 35 × 35 | 0.17 | 0.56 | |
SSPW11 | 40 × 40 | 0.23 | 0.40 | |
SSPW12 | 50 × 50 | 0.20 | 0.31 | |
SSPW13 | 60 × 60 | 0.15 | 0.27 | |
SSPW14 | 70 × 70 | 0.12 | 0.24 | |
SSPW15 | 80 × 80 | 0.13 | 0.19 | |
SSPW16 | 90 × 90 | 0.12 | 0.16 | |
SSPW17 | 100 × 100 | 0.10 | 0.15 | |
SSPW18 | 120 × 120 | 0.09 | 0.12 | |
SSPW19 | 150 × 150 | 0.063 | 0.11 | |
SSPW20 | 180 × 180 | 0.053 | 0.09 | |
SSPW21 | 200 × 200 | 0.053 | 0.07 |
Items | Mesh | Wire Diameter. (mm) | Aperture (mm) | Material (AISI) |
---|---|---|---|---|
SSTW01 | 250 × 250 | 0.040 | 0.063 | SUS316 |
SSTW02 | 300 × 300 | 0.040 | 0.044 | |
SSTW03 | 325 × 325 | 0.035 | 0.043 | SUS316L |
SSTW04 | 350 × 350 | 0.030 | 0.042 | |
SSTW05 | 400 × 400 | 0.030 | 0.033 | |
SSTW06 | 450 × 450 | 0.028 | 0.028 | |
SSTW07 | 500 × 500 | 0.025 | 0.026 |
Items | Mesh | Wire Diameter (mm) | Material (AISI) |
---|---|---|---|
SSDW01 | 12 × 64 | 0.58 × 0.40 | SUS304 or SUS316 |
SSDW02 | 24 × 110 | 0.36 × 0.25 | |
SSDW03 | 14 × 88 | 0.50 × 0.33 | |
SSDW04 | 30 × 150 | 0.23 × 0.18 | |
SSDW05 | 40 × 200 | 0.18 × 0.13 | |
SSDW06 | 50 × 250 | 0.14 × 0.11 | |
SSDW07 | 80 × 700 | 0.10 × 0.08 | |
SSDW08 | 165 × 800 | 0.071 × 0.040 | |
SSDW09 | 165 × 1400 | 0.06 × 0.04 | |
SSDW10 | 200 × 1800 | 0.05 × 0.032 | |
SSDW11 | 825 × 2300 | 0.035 × 0.025 | SUS316L |
SSDW12 | 400 × 2800 | 0.030 × 0.02 |
Features
Applications

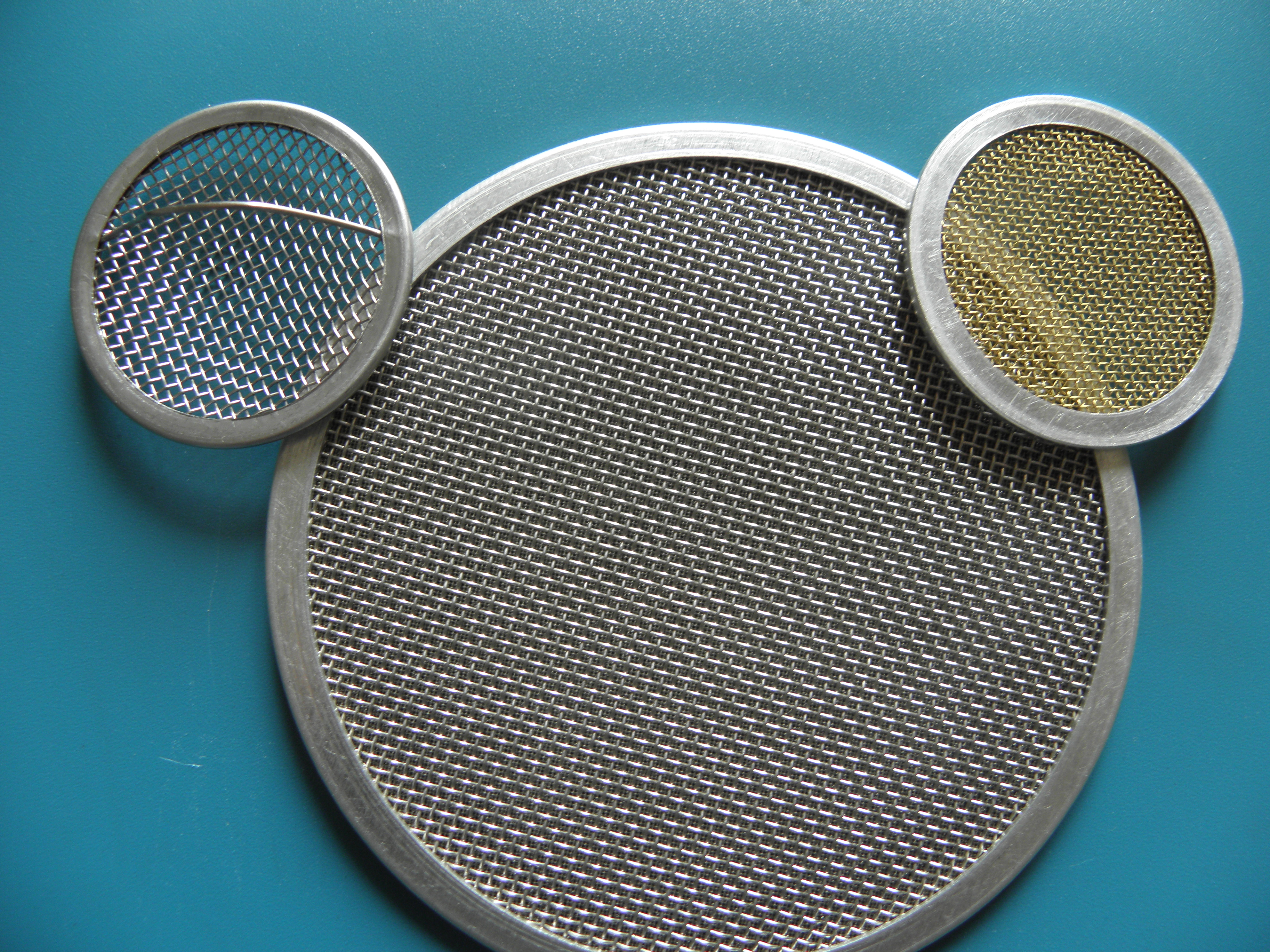

Stainless steel filter discs with high acid and alkali resistance
can be used in very hash conditions.
Features
Applications
Stainless steel filter discs with high acid and alkali resistance
can be used in very hash conditions.
![]() |
