Product Description
1. introduction for the light welded wire mesh machine
1.Professional independent production workshop, dozens of older
skilled workers for production and commissioning of production
machinery, to ensure the normal operation of the machine.
2.Variety of specifications can be customized according to the
requirements, including the wire diameter, wire width, hole size.
3.PLC automatic control
4.Commissioning the machine in the factory and assembled complete
assurance can be used immediately after purchase, no longer to
assemble,complete accessories.
5.Easy to operate, only one person can operate, lower labor costs
6.Have all kinds of certificate.

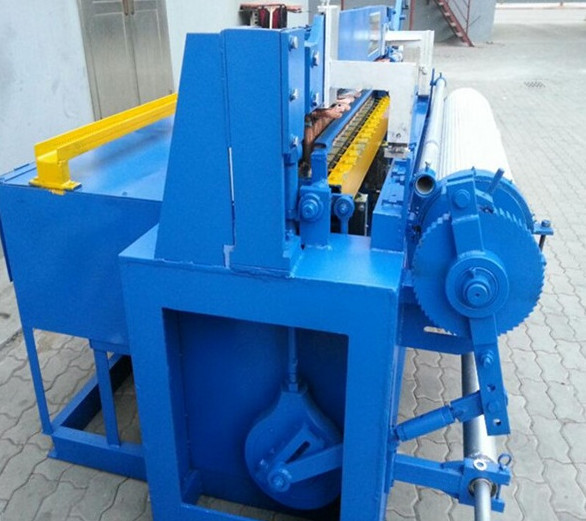

Automatic galvanized wire mesh roll machine
Technical Parameter
| Model | DP-DNW-1 | DP-DNW-2 | DP-DNW-3 |
| Wire diameter | 0.4mm-0.65mm | 0.65mm-2.2mm | 1.0mm-2.5mm |
Aperture/pitch | 6.35mm 12.7mm 1/4" 1/2" | 12.5mm 25mm 50 mm 1/2' ' 1'' 2'' | 25mm 50mm 75mm 100mm 1'' 2'' 3'' 4'' |
| Mesh width | Max.914mm , 1000mm | 1.2m 1.5m 1.8m 2m | 1.2m-2.5m |
| Motor | 2.2 kw | 3kw;4kw | Max5.5kw |
| Welding speed | Max .75rows/min | Max .180 rows/min | Max . 180rows/min |
| Measurement | 2.3*1.3*1.4m | 2.5/2.9*1.3*1.4m | 2.5/2.9*1.3*1.4m |
| Weight | 1.5T | 2T,2.5T | 2T,2.5T,3T,3.5T |
| Transformers | 50kva*3 | 60kva*4/5/6/7 | 60kva*3/4/5/6/7/8 |
Notes
1. This machine can weld 0.4-2.5mm ,the raw material can be blace wire , galvanized wire , stainless steel wire
2. For the wire feeding ,both longitude wire and cross wire are feed automatically from wire coils
3.The edge cutter and middle cutter can adjust freely , So you can get regular edge and 2 or 3 rolls mesh at the same time
4.You can set the mesh roll length by counter switch on the control panel
5.Both welding time and welding current is adjustble on control
panel to adjust the welding degree
mesh repair machine
Mesh repairing table
Welded wire mesh machine wire spool winding machine
bobbin stand-off
Electric control cabinet
Machine details:
1. electric box
2. repair mesh machine
3. repair mesh table
4. draw drum
5. spooling machine
6. pay-off swift
1) Installation and commissioning
Machine to be installed and commissioned by our technicians
The seller will send our engineer to install the machine
accordingly if the buyer need
The buyer has to pay the salary US$100 per day, and the air ticket,
accommodation,
eating and some related fees should be your responsibility
2) Guarantee
Except the wearing parts,
12 months guarantee for machine and 6 months
guarantee for electric appliance after shipment.
During guarantee time, if the parts were broken caused by the
product problem,
seller will offer the parts by free.
If the parts were broken caused by the mishandling by buyer,
buyer needs to buy the parts from seller.
In order to give you one accurate quotation sheet,please supply us
more of your requirements as below:
1.wire diameter range
2.mesh width
3.panel length
4.mesh opening size
5.industrial votage/frequency
We are a manufacturer of mesh welding machines in China, our
factory is located in Anping county, Hebei Province. Our main
products are:
Reinforcing mesh welding machine, fence mesh welding machine,
animal cage welding machine, steel grating welding machine, roll
mesh welding machine, wedged wire screen welding machine, wire
straightening and cutting machine etc.
