Advantages1. Alarm device as a reminder of stopping machine.2. Emergency button can stop machine conveniently.3. PLC control system.
4. Supply free spare parts.5. High speed.Technical parameter1. Razor forming machine -63T
| Motor | 5.5KW |
| Voltage | 380V |
| Capacity | 190-330kg/h (11pieces) |
| Dimension | 1800*1600*2650mm |
| Weight | 4.1T |
2. Razor wire making machine
| Motor | 3KW |
| Voltage | 380V |
| Capacity | 100Kg/h |
| Dimension | 1100*900*1100mm |
| Weight | 345Kg
|
1. Advantages
Easy operation, high efficiency, easy maintenance and moderate
price.
Saves time, 20% raw materials and cost.
2. Working principle:

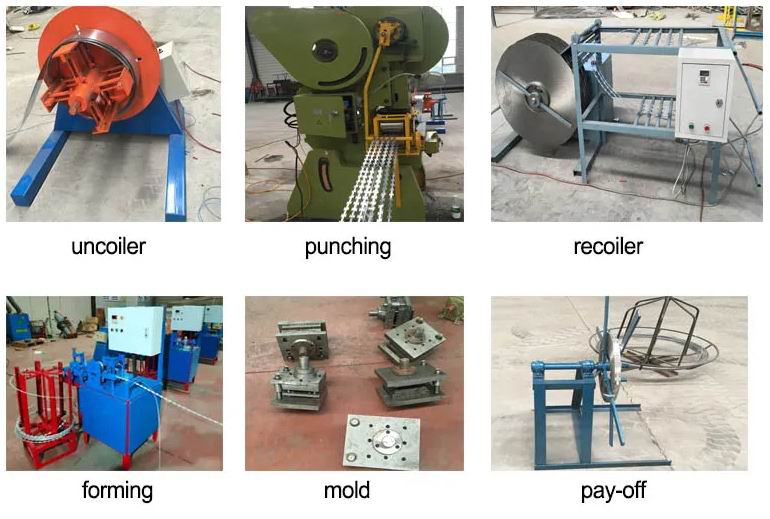

Razor barbed wire machine consists of razor strip making machine
and coil machine.
Razor strip making machine cuts steel strip into different razor shapes according to
different moulds.
Coil machine is used to wrap razor strip up onto the steel wire and wind up the
finished
products into rolls.
Raw material: low carbon wire.
3. Technical paramter
Concertina razor barbed wire machine
Razor barbed wire machine, also called Concertina razor barbed wire
machine, Razor wire making machine, Razor wire fence machine, is
used to make razor barbed wire for security use.
| Punching machine -- from YANGLI | Coiling machine-- Inverter controlled |
| Speed | 220-280m/h | 800 kgs/ 8hours |
| Raw material | Galvanized steel sheet;
Or Stainless steel | Galvanized wire |
| Thickness | 0.5±0.05mm | 2.5-3mm, 2.5mm is popular |
| Motor | 2.2kw/ 4kw/ 5kw | 1.5kw |
| Voltage | Customized as request | Customized as request |
| Weight | 2200/3300/ 4500Kgs | 300kgs |
| Dimension | 1325×990×2140 mm | 1100*750*1200mm |
| Razor model | Barb Length (mm) | Barb Width (mm) | Barb Spacing
(mm) | Illustration | Punch Capacity (strips) |
| By 25T | By 40T | By 63T |
| BTO-22 | 22±1 | 15±1 | 34±1 |  | 9 | 9 | 11/13 |
| BTO-65 | 65±1 | 21±1 | 100±1 | | | 5 | 9 |
| Our machine can make other razor models. Please contact us for more
information: |
4. Related machinery. - Hebei changrong metal products Co.,LTD
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine,
animal cage welding machine, steel grating welding machine,
electric welded wire mesh machine, wedged wire screen welding
machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, razor barbed wire
machine,wire drawing machine, expanded metal mesh machine,
grassland wire mesh machine, gabion mesh machine, hexagonal wire
mesh machine,steel fiber making machine etc.
4.2 Expanded metal mesh machine
Expanded metal making machine is to make expanded metal sheet for
construction, protection fence, isolation mesh, decoration mesh,
industrial filtering.
